| Dimensions | |
|---|---|
| Overall length | 1490mm (58.7 in) |
| Overall width | 680mm (26.8 in) |
| Overall height | 880mm (34.6 in) |
| Wheelbase | 1040mm (40.9 in) |
| Ground clearance | 145mm (5.7 in) |
| Seat height standard | 680mm (26.8 in) |

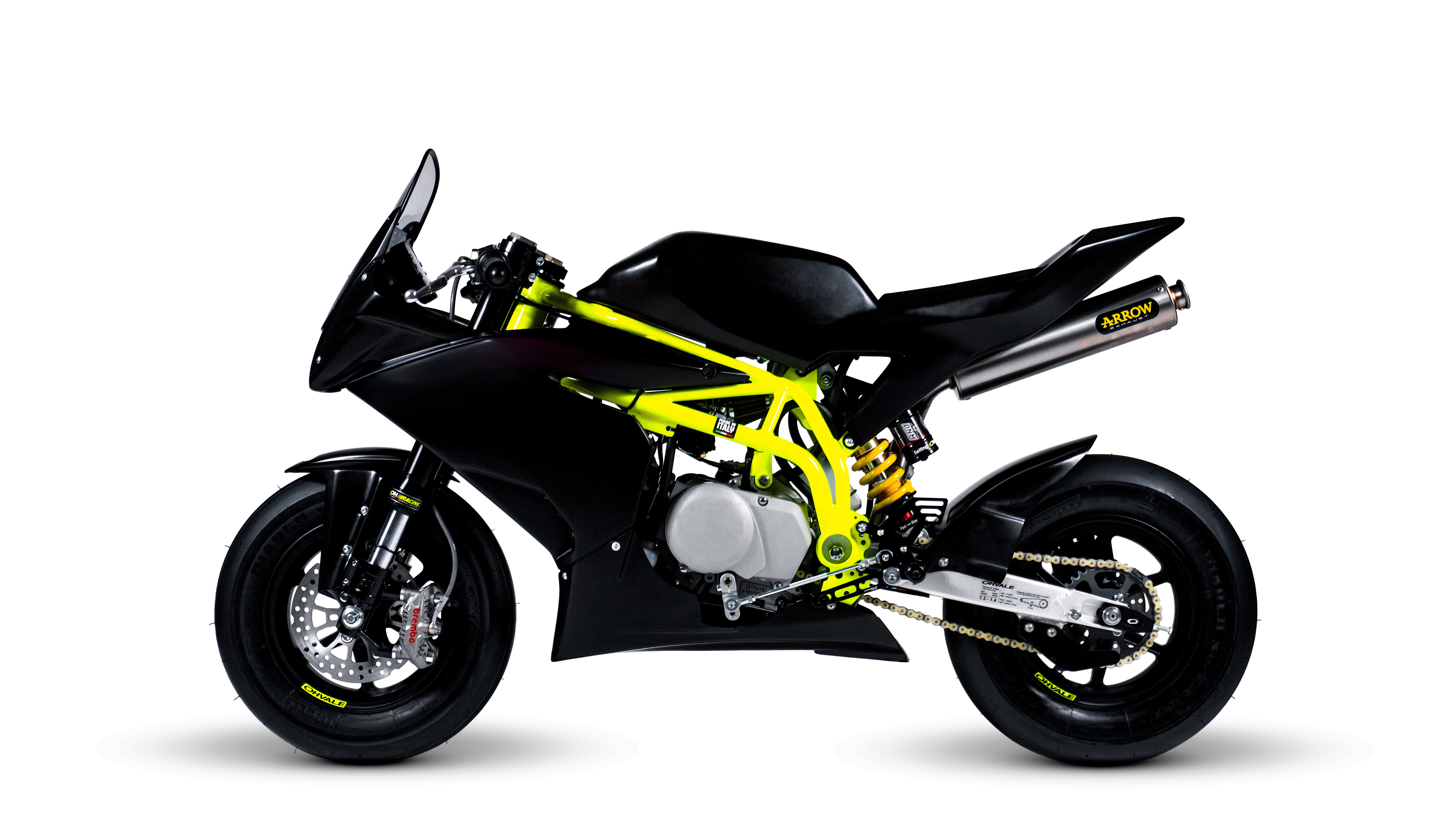

![GP-0 160 RENDER BLACK[56]](https://www.fim-minigpworldseries.com/wp-content/uploads/2025/02/GP-0-160-RENDER-BLACK56.jpg)
| Frame | |
|---|---|
| Type | Tubolar steel trellis frame |
| Front suspension | Upside down fork 33mm (1.3 in) |
| Rear suspension | Aluminium swing-arm. Monoshock with piggy-back – Fully adjustable: hydraulic compression and rebound damping, spring preload, wheelbase |
| Front tire size | PIRELLI 100/80-10 DIABLO SUPERBIKE |
| Rear tire size | PIRELLI 120/80-10 DIABLO SUPERBIKE |
| Front brake | Cast alluminum wheels 2.50 x 10″ – 3.00 x 10″ |
| Rear brake | Single disk Ø 180mm (optional Ø 190mm disk) Monoblock radial caliper with 4 pistons Assial master cylinder with integrated tank and metal braided hose |
| Fuel capacity | Single disk Ø 155mm Radial caliper with 2 pistons Master cylinder with integrated tank and metal braided hose |
| Engine | |
|---|---|
| Type | ZS Horizontal single cylinder-4 stroke-Air cooling |
| Cylinder arrangement | 60×55 mm (2.36 x 2.16 in) |
| Bore and stroke | 155.5 cm3 (9.49 cu – in) |
| Displacement | 11.5:1 |
| Compression ratio | Chain driven – SOHC – Two valves |
| Valve train | Forced pressure and wet pump |
| Lubrication system | Electronic, variable advance |
| Oil pump type | Kick lever |
| Drive Train | |
|---|---|
| Clutch operating system | 6 – plate wet clutch – cable operated |
| Clutch type | 67 / 18 (3.722) |
| Transmission | 4 speed: N-1-2-3-4 |
| Final reduction | Regina Chain gold series. Drive ratio 35/16 (2,187) |
| Gearshift pattern | 6 – plate wet clutch – cable operated |
| Dimensions | |
|---|---|
| Overall length |
1610 mm (63.3 in)
|
| Overall width |
740 mm (29.1 in)
|
| Overall height |
915 mm (36 in)
|
| Wheelbase |
1105 mm (43.5 in)
|
| Ground clearance |
145 mm (5.7 in)
|
| Seat height standard |
725 mm (28.5 in)
|

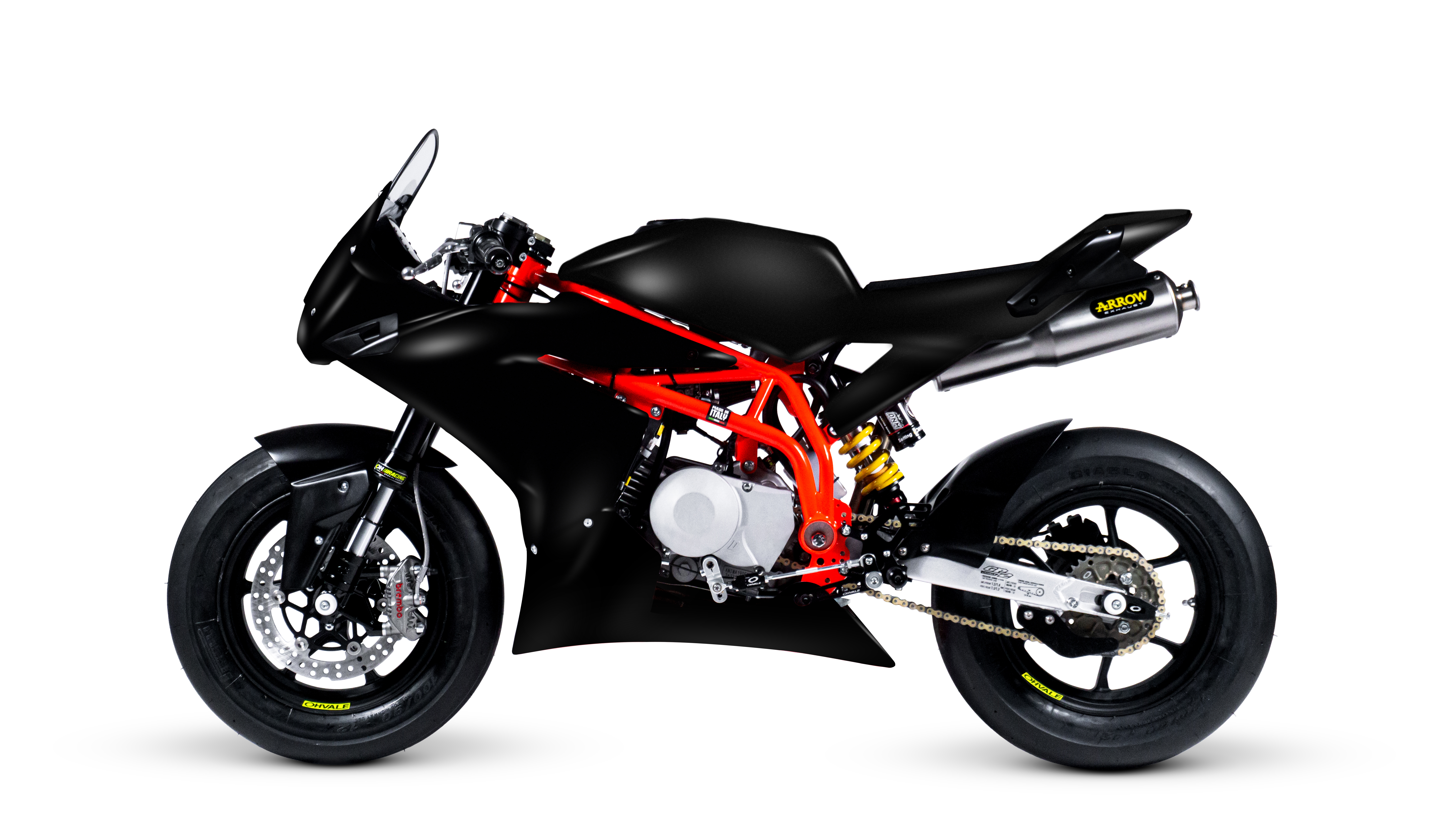

![GP-2 190 RENDER BLACK[29]](https://www.fim-minigpworldseries.com/wp-content/uploads/2025/02/GP-2-190-RENDER-BLACK29.jpg)
| Frame | |
|---|---|
| Type |
High-strength steel trellis frame
|
| Front suspension |
Ø 33mm upside-down fork & CNC foot fork. Spring config. K7-K7 and adjustable spring preload. RACE VERSION: Ø 35mm fully adjustable Ohracing fork. Spring config. K7-K8
|
| Rear suspension |
Aluminium swing-arm. Monoshock with piggy-back. Fully adjustable: hydraulic compression and rebound damping, spring preload & wheelbase.
|
| Front tire size |
PIRELLI 100/90-12’’ DIABLO SUPERBIKE
|
| Rear tire size |
PIRELLI 120/80-12’’ DIABLO SUPERBIKE
|
| Front brake |
Single floating disc Ø 220mm, 4.5mm tk. Brembo radial caliper (4 pistons D24). Sintered brake pads. Brembo axial master cylinder PS 10/19 with integrated tank & braided steel hose. RACE VERSION: Standard config. + Floating disc Ø 230mm, 4.5mm tk
|
| Rear brake |
Single disc Ø 180mm. J. Juan floating caliper (single piston D25). Axial master cylinder with integrated tank & braided steel hose
|
| Fuel capacity |
3.5 Liters
|
| Engine | |
|---|---|
| Type |
Daytona 190cc Horizontal single cylinder – 4 stroke – Air cooling
|
| Bore and stroke | 62mm x 62mm (2.44 in x 2.44 in) |
|
Displacement
|
187,18 cm3
|
| Compression ratio |
12,1:1
|
|
Valve train
|
Chain driven – SOHC – Two valves . Forced pressure and wet pump
|
| Lubrication system |
Wet sump lubrication system, with oil radiator. Oil quantity: 1 Liter
|
| Oil pump type |
Gears
|
| Drive Train | |
|---|---|
| Clutch operating system |
Cable operated
|
| Clutch type |
6 – plate wet clutch. RACE VERSION: dedicated slipper clutch system
|
| Transmission |
4 speed, Ohvale setting
|
| Final reduction |
Regina Chain gold series Ergal sprocket. Drive ratio 17/36 (2,117)
|
| Gearshift pattern |
N-1-2-3-4
|
